[16% off $125.00 ] BUSSMANN MODULAR FUSE BLOCK, ACCEPTS MID
$105USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

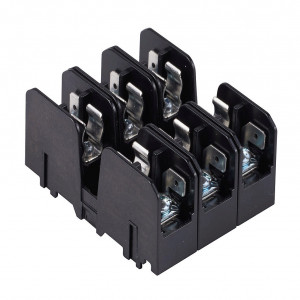

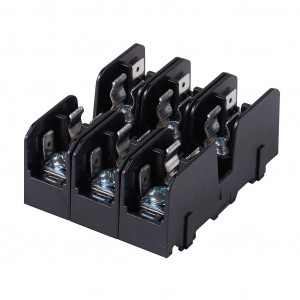

BUSSMANN MODULAR FUSE BLOCK, ACCEPTS MIDGET FUSES, 30A, 600V, 3-POLE, 18-10 AWG COPPER ONLY, PRESSURE PLATE WITH QUICK-CONNECT TERMINALS, 35MM DIN RAIL OR PANEL MOUNT. PACKAGE OF 5.
Modelo: BMM603-3PQ
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$105USD
Atributos del producto
| Brand | Bussmann |
|---|---|
| Item | Fuse block |
| Modular | Yes |
| Blown Fuse Indicator | No |
| Multi-Wire | No |
| Accepts Fuse Class | Midget |
| Amperage Rating | 30A |
|---|---|
| Voltage Rating | 600V |
| Number of Poles | 3 |
| Conductor Size | 18-10 AWG copper only |
| Conductor Connection Type | Pressure plate with quick-connect terminals |
| SCCR Rating | 200kA SCCR |
| Fuse Connection Type | Clip with reinforced spring |
| Mounting | 35mm DIN rail or panel |
| Quantity per Pack | 5 |
| Additional Information | Covers sold separately |
