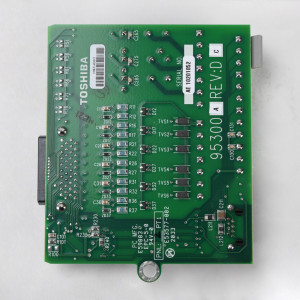

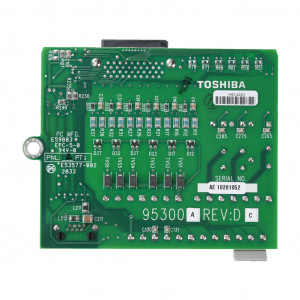

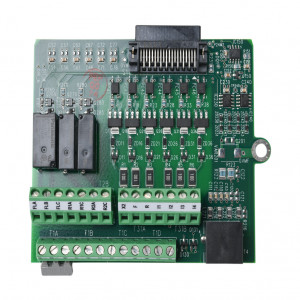

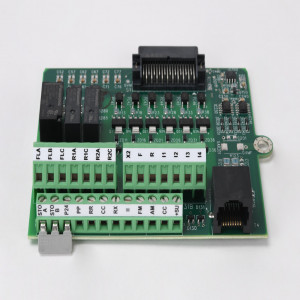

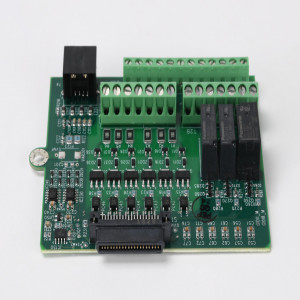

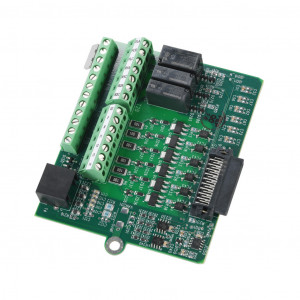

TOSHIBA AS3 SERIES RELAY/ANALOG COMBO MO
$386.00USD
Precio no incluye IVATOSHIBA AS3 SERIES RELAY/ANALOG COMBO MODULE, ANALOG INPUT: 3-CHANNEL, CURRENT/VOLTAGE, ANALOG OUTPUT: 2-CHANNEL, CURRENT/VOLTAGE, DISCRETE INPUT: 6-POINT, DISCRETE OUTPUT: 3-POINT, RELAY, (1) FORM C (SPDT) RELAY, (2) FORM A (SPST) RELAYS.
Marca: TOSHIBAModelo: AS3-ACI
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$386.00USD
Atributos del producto
| Brand | Toshiba |
|---|---|
| Item | Combo module |
| I/O Module Type | Relay/analog |
| Series | AS3 |
| Number of Analog Input Channels | 3 |
| Analog Input Signal Type | Current/voltage |
| Analog Input Type | Sinking and sourcing |
|---|---|
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 3 |
| Input Resolution | 11-bit |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Voltage Signal Range | 0-10 VDC and +/- 10 VDC |
| Number of Analog Output Channels | 2 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 2 |
| Output Resolution | 10-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 6 |
| Nominal Input Voltage | 120 VAC |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 6 |
| Number of Discrete Output Points | 3 |
| Nominal Output Voltage | 250 VAC/30 VDC |
| Discrete Output Type | Relay |
| Relay Configuration | (1) Form C (SPDT) relay, (2) Form A (SPST) relays |
| Number of Isolated Discrete Output Commons | 3 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 2A/point relay |
| Communication Port and Connection Type(s) | (1) RS-485 (RJ45) port(s) |
| Port Protocol(s) | Modbus RTU Slave |
| Port Speed(s) | Up to 38.4k baud |
| Fuse Type | User-supplied external fuse |
| External Power Requirement | 120 VAC |
| For Use With | Toshiba AS3 series AC drives |
| Additional Information | 120 VAC replacement I/O board for 460 VAC Toshiba drives |
