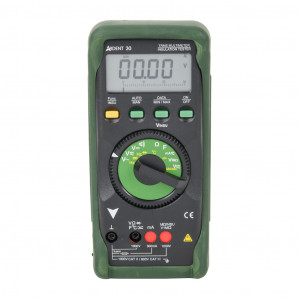

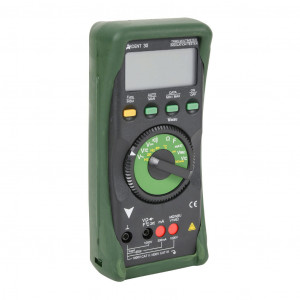

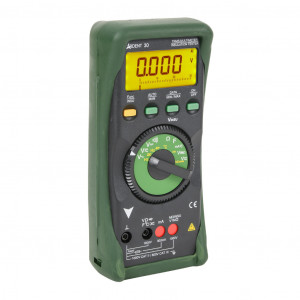

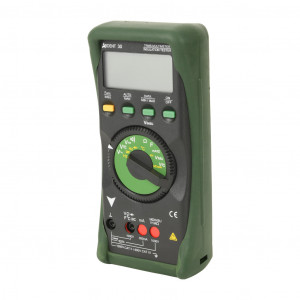

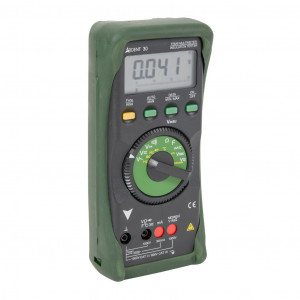

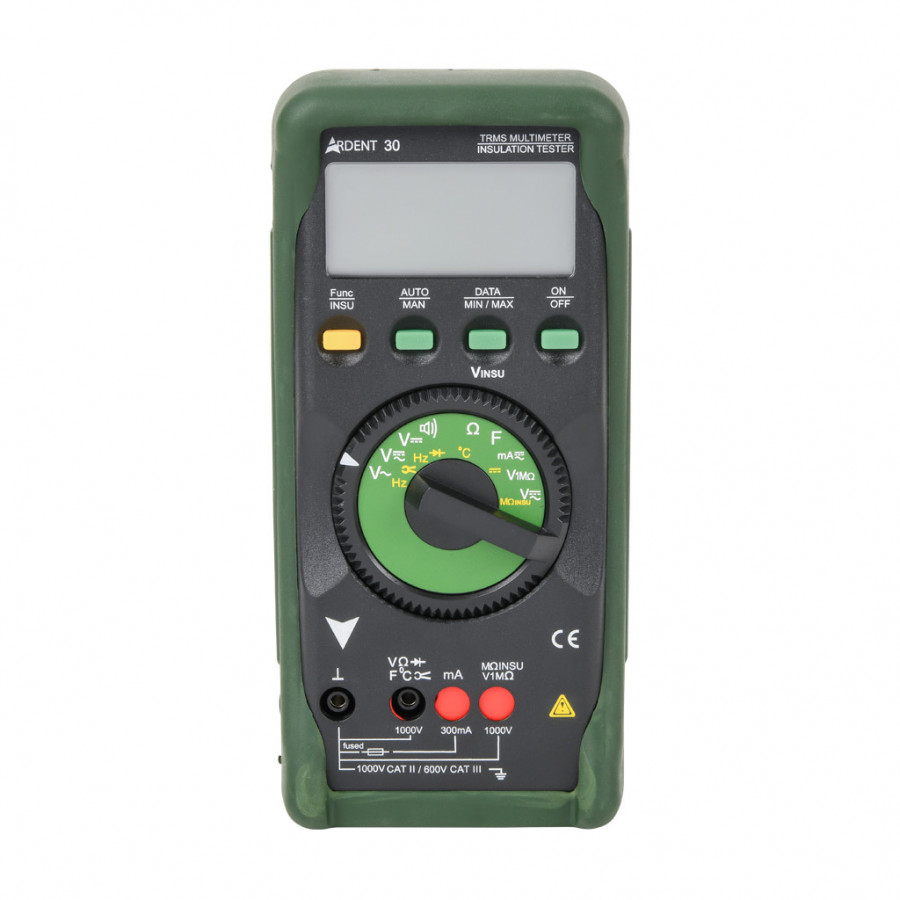

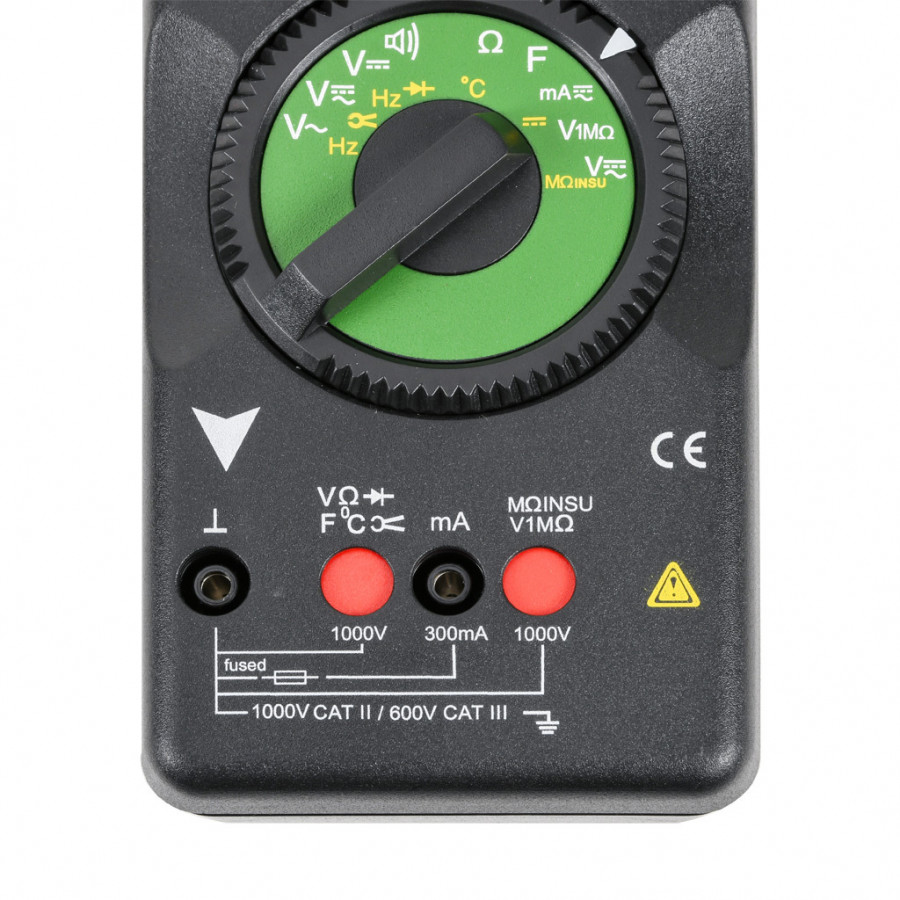

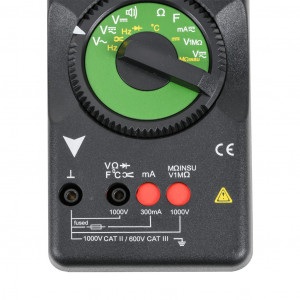

ARD-IT30

ARDENT INSULATION TESTER, AC/DC VOLTAGE,

$215.00USD

Precio no incluye IVA

ARDENT INSULATION TESTER, AC/DC VOLTAGE, AC/DC CURRENT, RESISTANCE, CONTINUITY, CAPACITANCE, FREQUENCY AND TEMPERATURE, 300A, CAT III 600V/CAT II 1000V, TRUE RMS.

Modelo: ARD-IT30

Documentos:

Product Line Brochure

Product Cut Sheet

Product Manual

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=ARD-IT30"

Debug Cantidad: "11"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Miércoles, 22 de Octubre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "585"

Debug idProveedor: "106"

Miércoles, 22 de Octubre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$215.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	ARDENT
Item	Insulation tester
Multimeter Type	Autoranging
Safety Rating	CAT III 600V/CAT II 1000V
AC Voltage Range	0-3.000 VAC, 0-30.00 VAC, 0-300.0 VAC and 0-1000 VAC
DC Voltage Range	0-30.00 mVDC, 0-300.0 mVDC, 0-3.000 VDC, 0-30.00 VDC, 0-300.0 VDC and 0-1000 VDC

AC Current Range	0-30.00A with amp probe and 0-300.0A with amp probe
DC Current Range	0-300.0 μA, 0-3.000 mA, 0-30.00 mA and 0-300.0 mA
Resistance Range	0-30.00 ohm, 0-300.0 ohm, 0-3.000 kohm, 0-30.00 kohm, 0-300.0 kohm, 0-3.000 Mohm and 0-30.00 Mohm
Insulation Resistance Range	50V Test Voltage = 100 kohm to 1.0 Mohm, 1.0 Mohm to 16.0 Mohm, 14.0 Mohm to 155.0 Mohm, 100V Test Voltage = 100 kohm to 3.0 Mohm, 2.8 Mohm to 31.0 Mohm, 28.0 Mohm to 310.0 Mohm, 250V Test Voltage = 100 kohm to 800 Kohm, 700 kohm to 8.0 Mohm, 7.0 Mohm to 80.0 Mohm, 70 Mohm to 800 Mohmn, 500V Test Voltage = 100 kohm to 1.6 Mohm, 1.4 Mohm to 16.0 Mohm, 14.0 Mohm to 160.0 Mohm, 140 Mohm to 1600 Mohm and 1000V Test Voltage = 100 kohm to 3.1 Mohm, 2.8 Mohm to 31.0 Mohm, 28.0 Mohm to 310.0 Mohm, 280 Mohm to 3100 Mohm
Capacitance Range	0-30.00 nF, 0-300.0 nF, 0-3.000 µF and 0-30.00 µF
Frequency Range	0-300.0 Hz, 0-3.000 kHz, 0-30.00 kHz and 0-100.0 kHz
Non-contact AC Voltage Detection	No
True RMS	Yes
Diode Tester	Yes
Duty Cycle	2.0-98.0\%
Temperature Range	-328 deg F to 1562 deg F and -200 deg C to 850 deg C
Includes	Fuse (1.6A), rubber holster, normal tip probe set, alligator clip set, temperature adaptor, instruction manual and test certificate
Applicable Standards	CE, IEC 61557, IEC 61326
IP Rating	IP20
Application	Electrical testing and insulation testing
