[16% off $2219.00 ] IRONHORSE ACN SERIES AC GENERAL PURPOSE
$1863.96USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

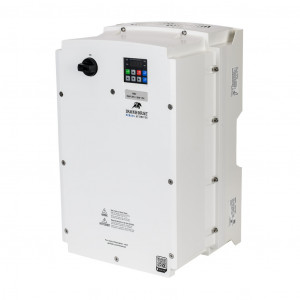

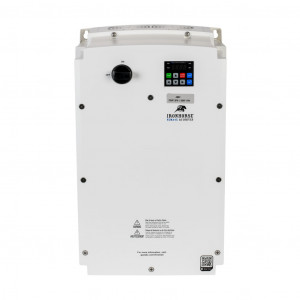

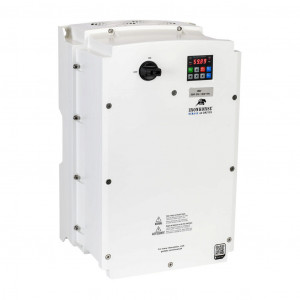

IRONHORSE ACN SERIES AC GENERAL PURPOSE DRIVE WITH DISCONNECT, NEMA 4X, 460 VAC, 25HP WITH 3-PHASE INPUT, 10HP WITH 1-PHASE INPUT, SVC, V/HZ OR TORQUE MODE, 5 FRAME, RS-485, MODBUS, 100KA SCCR. OPTIONAL ETHERNET/IP AND MODBUS TCP CARD AVAILABLE.
Modelo: ACN-4025
Documentos:
Este producto incluye
Envío gratis
* Aplican restricciones
Martes, 10 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1863.96USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive with disconnect |
| Controller Type | General purpose |
| Series | ACN |
| Voltage Type | AC |
| Nominal Drive Input Voltage | 460 VAC |
| Nominal Drive Output Voltage | 460 VAC |
|---|---|
| Number of Input Phases | 1 and 3 |
| Number of Output Phases | 3 |
| Horsepower By Phase | 25hp with 3-phase input, 10hp with 1-phase input |
| Amperage Rating | 39A with 3-phase input and 23A with 1-phase input |
| Control Mode | SVC, V/Hz or torque |
| Safe Torque Off (STO) | Yes |
| Temperature Rating | -10 to 40 deg C |
| Enclosure Type | NEMA 4X |
| IP Rating | IP66 |
| Mounting | Panel or wall |
| Frame Size | 5 |
| Dynamic Braking | Integrated dynamic braking unit |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Input Signal | 4-20 mA, voltage, potentiometer or pulse train input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 1-15 kHz |
| Output Frequency Range | 0.1-400 Hz |
| Number of Analog Input Channels | 2 |
| Number Of Input Channels | 2 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 2 |
| Input Resolution | 12-bit |
| Input Current Signal Range | 4-20 mA |
| Input Voltage Signal Range | +/- 10 VDC |
| Number of Analog Output Channels | 1 |
| Number Of Output Channels | 1 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 1 |
| Output Resolution | 12-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 5 |
| Nominal Discrete Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 5 |
| Number of Discrete Output Points | 2 |
| Nominal Discrete Output Voltage | 240 VAC and 24 VDC |
| Discrete Output Type | Relay/sinking/sourcing |
| Relay Configuration | (1) Form C (SPDT) relay |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 1A/point relay, 150 mA/point discrete |
| Fuse Type | User-supplied external fuse |
| Programming Language | Function block |
| SCCR Rating | 100kA SCCR |
| For Use With | 3-phase induction and permanent magnet motors |
| Additional Information | Optional EtherNet/IP and Modbus TCP card available |
