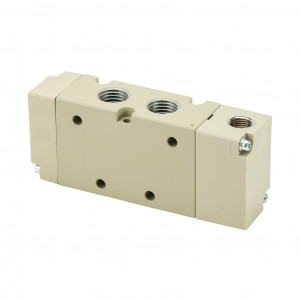

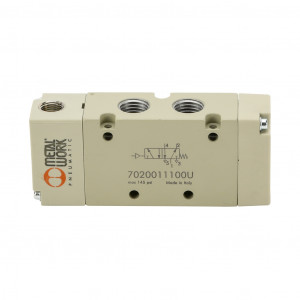

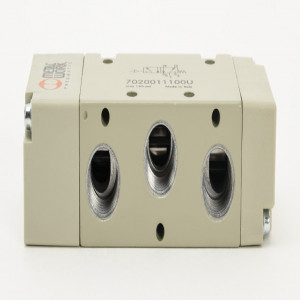

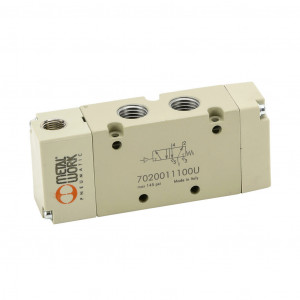

METAL WORK PILOT VALVE, 5-PORT (4-WAY),
$57.00USD
Precio no incluye IVAMETAL WORK PILOT VALVE, 5-PORT (4-WAY), 2-POSITION, SINGLE AIR PILOT SPRING RETURN, 1/4IN FEMALE NPT INLET(S), 1/4IN FEMALE NPT OUTLET(S), 1/4IN FEMALE NPT EXHAUST(S), 1/8IN FEMALE NPT PILOT(S), CV=1.1.
Marca: METAL WORKModelo: 7020011100U
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$57.00USD
Atributos del producto
| Brand | Metal Work |
|---|---|
| Series | Series 70 |
| Item | Valve |
| Working Fluid | Air |
| Valve Type | Pilot directional control |
| Port Quantity | 5-port (4-way) |
| Number Of Positions | 2 |
|---|---|
| Action | Single air pilot spring return |
| Body Material | Aluminum |
| Body Width | 25mm |
| Inlet Port | 1/4in female NPT |
| Outlet Port | 1/4in female NPT |
| Exhaust Port | 1/4in female NPT |
| Pilot Port | 1/8in female NPT |
| Flow Coefficient | 1.1 |
| Maximum Operating Pressure | 145 psi (10 bar) |
| Minimum Operating Pressure | Vacuum |
