[16% off $687.00 ] METAL WORK REGTRONIC PNEUMATIC TRANSDUCE
$577.08USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

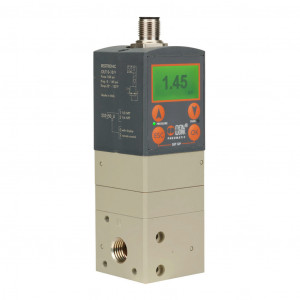

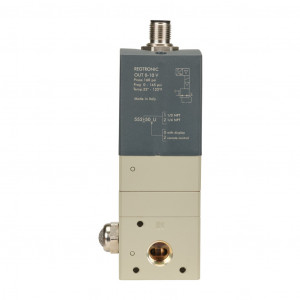

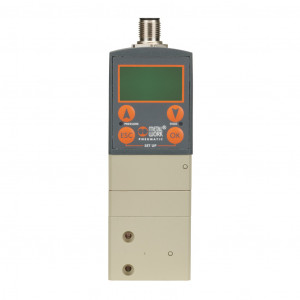

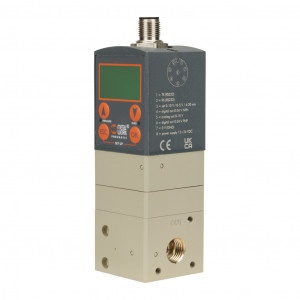

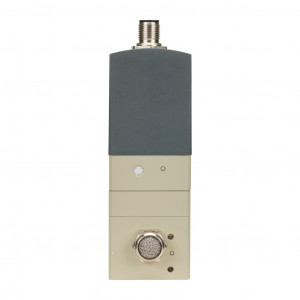

METAL WORK REGTRONIC PNEUMATIC TRANSDUCER, 4-20 MA, 0-5 VDC OR 0-10 VDC INPUT, 0.05 TO 10 BAR ADJUSTABLE OUTPUT PRESSURE, 0-10 VDC, SWITCH (N.O./N.C.) PNP/NPN OUTPUT, 1/4IN FEMALE NPT INLET(S), 1/4IN FEMALE NPT OUTLET(S), 8-PIN M12 QUICK-DISCONNECT, IP65.
Modelo: 5522500U
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$577.08USD
Atributos del producto
| Brand | Metal Work |
|---|---|
| Series | Regtronic |
| Item | Pneumatic transducer |
| Input | 4-20 mA, 0-5 VDC or 0-10 VDC |
| Output | 0-10 VDC, switch (N.O./N.C.) PNP/NPN |
| Output Pressure | 0.05 to 10 bar adjustable |
| Pressure Units | Bar, Mpa, psi selectable |
|---|---|
| Inlet Port | 1/4in female NPT |
| Outlet Port | 1/4in female NPT |
| Flow Capacity | 1500 Nl/min (52.5 scfm) at 6.3 bar (91 psig) supply pressure |
| Exhaust Capacity | 1300 Nl/min (45.5 scfm) at 6.3 bar (91 psig) supply pressure |
| Air Consumption | No consumption |
| Communication | RS-232 |
| Display Type | 31 x 16.5mm black LCD |
| Electrical Connection | 8-pin M12 quick-disconnect |
| IP Rating | IP65 |
