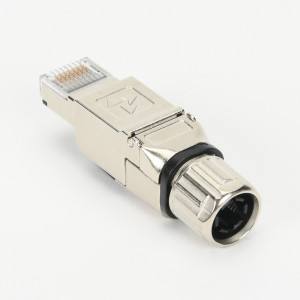

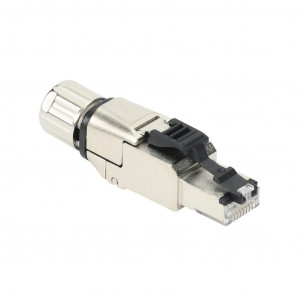

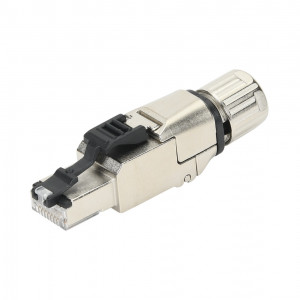

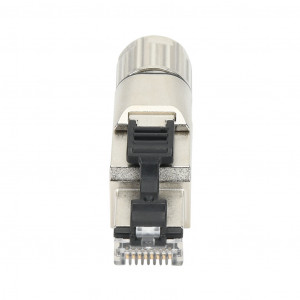

LUTZE CAT6A ETHERNET CONNECTOR, FIELD-WI
$42.00USD
Precio no incluye IVALUTZE CAT6A ETHERNET CONNECTOR, FIELD-WIREABLE, RJ45 MALE AXIAL 8-WIRE/8-PIN, ACCEPTS CABLE DIAMETER SIZE 5.5-10MM, 24-22 AWG, TIA-568B COLOR CODE, INSULATION DISPLACEMENT (IDC) CONNECTION, IP20.
Marca: LUTZEModelo: 490174
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$42.00USD
Atributos del producto
| Brand | LUTZE |
|---|---|
| Item | Connector |
| Field-Wireable | Yes |
| Form Factor | Cable termination |
| Connector Standard | Cat6a Ethernet |
| Connector Type | RJ45 |
| Gender | Male |
|---|---|
| Angle | Axial |
| Number of Wires | 8 |
| Number Of Pins | 8 |
| Terminal Connection | Insulation displacement (IDC) |
| Cable Diameter Size | 5.5-10mm |
| Conductor Size | 24-22 AWG |
| Conductor Color Code | TIA-568B |
| Shielded | Yes |
| Housing Material | Die-cast zinc |
| IP Rating | IP20 |
| Additional Information | Exceeds Category 6A specifications |
