[5% off $41.00 ] LUTZE CAT6A ETHERNET CONNECTOR, FIELD-WI
$38.95USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

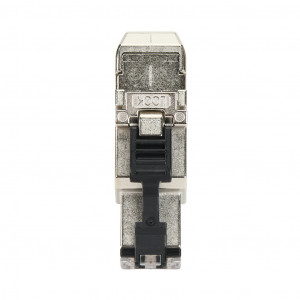

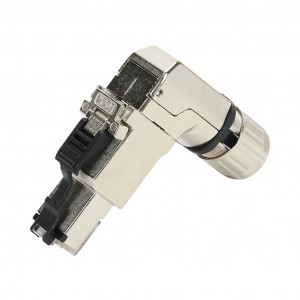

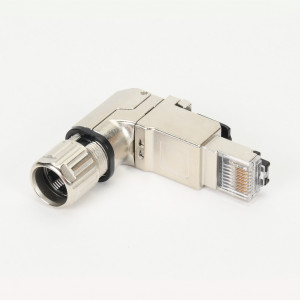

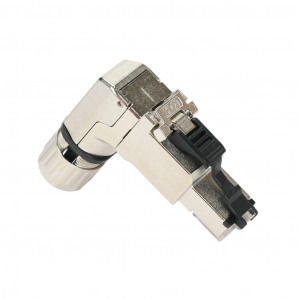

LUTZE CAT6A ETHERNET CONNECTOR, FIELD-WIREABLE, RJ45 MALE 90-DEGREE 8-WIRE/8-PIN, ACCEPTS CABLE DIAMETER SIZE 5.5-10MM, 24-22 AWG, TIA-568B COLOR CODE, INSULATION DISPLACEMENT (IDC) CONNECTION, IP20.
Modelo: 490151
Entrega estimada:
Lunes, 21 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$38.95USD
Atributos del producto
| Brand | LUTZE |
|---|---|
| Item | Connector |
| Field-Wireable | Yes |
| Form Factor | Cable termination |
| Connector Standard | Cat6a Ethernet |
| Connector Type | RJ45 |
| Gender | Male |
|---|---|
| Angle | 90-degree |
| Number of Wires | 8 |
| Number Of Pins | 8 |
| Terminal Connection | Insulation displacement (IDC) |
| Cable Diameter Size | 5.5-10mm |
| Conductor Size | 24-22 AWG |
| Conductor Color Code | TIA-568B |
| Shielded | Yes |
| Housing Material | Die-cast zinc |
| IP Rating | IP20 |
| Additional Information | Exceeds Category 6A specifications |
