[18% off $689.00 ] WAGO PRO2 SERIES SWITCHING POWER SUPPLY,
$564.98USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

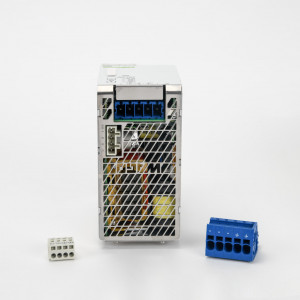

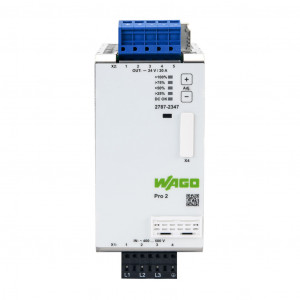

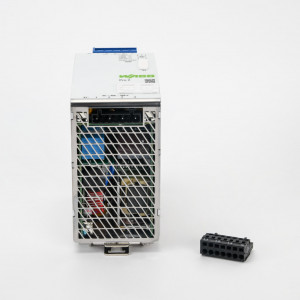

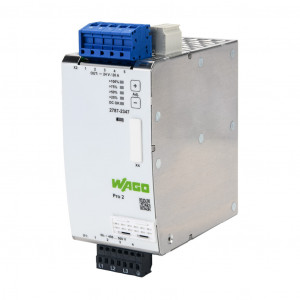

WAGO PRO2 SERIES SWITCHING POWER SUPPLY, 24-28 VDC OUTPUT, 20A, 480W, 480 VAC NOMINAL INPUT, 3-PHASE, ENCLOSED, METAL HOUSING, 35MM DIN RAIL MOUNT, CAGE CLAMP.
Modelo: 2787-2347
Este producto incluye
Envío gratis
* Aplican restricciones
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$564.98USD
Atributos del producto
| Brand | WAGO |
|---|---|
| Item | Power supply |
| Series | Pro2 |
| Power Supply Type | Switching |
| Efficiency | 95.9\% @400VAC |
| Output Configuration | Single output |
| Nominal Output Voltage | 24 VDC (adjustable) |
|---|---|
| Output Voltage Range | 24-28 VDC |
| Amperage Rating | 20A |
| Output Power | 480W |
| Nominal Input Voltage | 480 VAC |
| Input voltage range | 340-550 VAC/480-780 VDC |
| Number of Input Phases | 3 |
| Protection Type(s) |
|
| Voltage Monitoring | Yes |
| Enclosure Type | Enclosed |
| Housing Material | Metal |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail |
| Connector Type | Cage clamp |
| NEC Class 2 | No |
| Integrated UPS Battery Control | No |
| Operating Temperature | -20 to 75 deg C |
| Power Boost | 150\% for 5s |
