M.G.M. ELECTRIC MOTORS BAX IE3 PREMIUM E
$1516.00USD

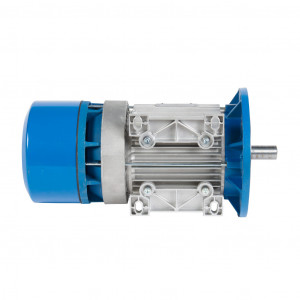

Precio no incluye IVAM.G.M. ELECTRIC MOTORS BAX IE3 PREMIUM EFFICIENCY AC INDUCTION MOTOR, GENERAL PURPOSE, INVERTER RATED AND BRAKE, 3HP, 3-PHASE, 230/460 VAC, 1800RPM, TEFC, IEC 100 FRAME, ALUMINUM, D-FLANGE/REMOVABLE RIGID BASE (B35) MOUNT. INTEGRATED BRAKE ASSEMBLY INCLUDED.
Modelo: 18Q7
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Fecha Entrega:
Precio (no incluye IVA):
$1516.00USD
Atributos del producto
| Brand | M.G.M. Electric Motors |
|---|---|
| Item | Motor |
| Series | BAX |
| Efficiency Group | IE3 premium efficiency |
| Efficiency | 89.5 |
| Voltage Type | AC |
| Motor Type | Induction |
|---|---|
| Motor Application | General purpose, inverter rated and brake |
| Horsepower Rating | 3hp |
| Number of Phases | 3 |
| Voltage Rating | 230/460 VAC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1750rpm |
| Overload Type | None |
| Enclosure Type | TEFC |
| Shaft Type | Round with square key |
| Shaft Diameter | 28mm |
| Shaft Material | C43 steel |
| Motor Frame | IEC 100 |
| Frame Material | Aluminum |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP54 |
| Constant Torque Rating | 5 |
| Variable Torque Rating | 1000 |
| Service Factor | 1.15 |
| Integrated Brake | Yes |
| Brake Voltage Rating | 230/460 VAC |
| Brake Torque Rating | 36.8 lb-ft |
| Manual Brake Release | Yes |
| Duty Cycle | S1 continuous duty |
| Junction Box Orientation | F3 |
| Mounting | D-flange/removable rigid base (B35) |
| Mounting Orientation | Horizontal or vertical |
| Includes | Integrated brake assembly |
