[2% off $533.00 ] M.G.M. ELECTRIC MOTORS BAX IE2 HIGH EFFI
$522.34USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

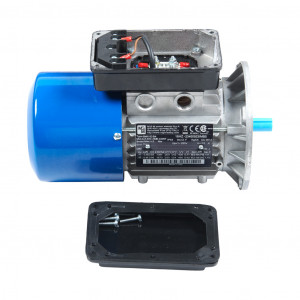

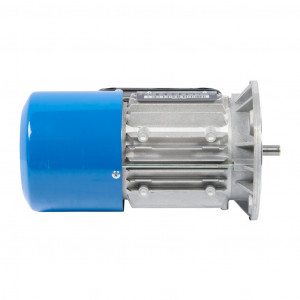

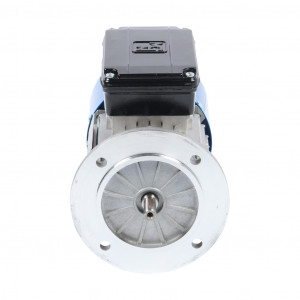

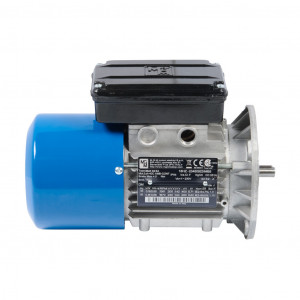

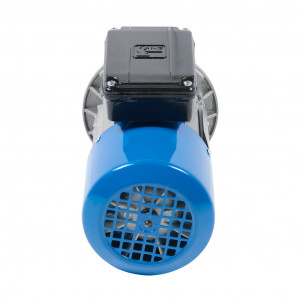

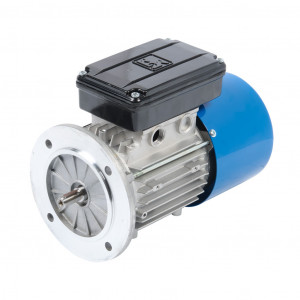

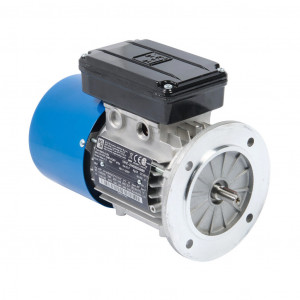

M.G.M. ELECTRIC MOTORS BAX IE2 HIGH EFFICIENCY AC INDUCTION MOTOR, GENERAL PURPOSE, INVERTER RATED AND BRAKE, 1/2HP, 3-PHASE, 230/460 VAC, 1800RPM, TEFC, IEC 71 FRAME, ALUMINUM, D-FLANGE (B5) MOUNT. INTEGRATED BRAKE ASSEMBLY INCLUDED.
Modelo: 18HZ
Entrega estimada:
Lunes, 09 De Junio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$522.34USD
Atributos del producto
| Brand | M.G.M. Electric Motors |
|---|---|
| Item | Motor |
| Series | BMX |
| Efficiency Group | IE2 high efficiency |
| Efficiency | 68 |
| Voltage Type | AC |
| Motor Type | Induction |
|---|---|
| Motor Application | General purpose, inverter rated and brake |
| Horsepower Rating | 1/4hp |
| Number of Phases | 3 |
| Voltage Rating | 230/460 VAC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1670rpm |
| Overload Type | None |
| Enclosure Type | TEFC |
| Shaft Type | Round with square key |
| Shaft Diameter | 11mm |
| Shaft Material | C43 steel |
| Motor Frame | IEC 63 |
| Frame Material | Aluminum |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP54 |
| Constant Torque Rating | 5 |
| Variable Torque Rating | 1000 |
| Service Factor | 1.15 |
| Integrated Brake | Yes |
| Brake Voltage Rating | 230 VAC |
| Brake Torque Rating | 3.7 lb-ft |
| Manual Brake Release | No |
| Duty Cycle | S1 continuous duty |
| Junction Box Orientation | F3 |
| Mounting | D-flange (B5) |
| Mounting Orientation | Horizontal or vertical |
| Includes | Integrated brake assembly |
