[3% off $166.00 ] STEGO FILTER FAN INTAKE FAN, SIDE MOUNT,
$161.02USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

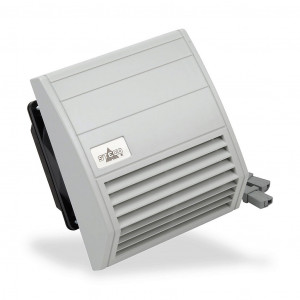

STEGO FILTER FAN INTAKE FAN, SIDE MOUNT, 32 CFM, 24 VDC OPERATING VOLTAGE, G4 (COARSE) FILTER MAT, NEMA 12, INDOOR USE ONLY, 4.92 X 4.92IN ENCLOSURE CUTOUT, RAL 7035 LIGHT GRAY.
Modelo: 018010-02
Entrega estimada:
Viernes, 13 de Junio de 2025
Precio (no incluye IVA):
$161.02USD
Atributos del producto
| Brand | Stego |
|---|---|
| Series | Filter Fan |
| Airflow Direction | Intake |
| Item | Fan |
| Mounting | Side |
| With Air Flaps | No |
| Filter Media | G4 (coarse) filter mat |
|---|---|
| Free Airflow | 32 CFM |
| Airflow with Grill and Filter(s) | 25 CFM |
| Operating Voltage | 24 VDC |
| Power Consumption | 5W |
| Current Draw | 210 mA |
| Electrical Connection | (2) AWG 14 x 4in long wires with cage clamps |
| Maximum Static Pressure | 32Pa |
| Operating Temperature Min/Max | 14F/158F |
| Average Noise Level | 40 dBA |
| NEMA Rating | 12 |
| Application | Indoor use only |
| IP Rating | IP54 (IP55 with optional M5 filter media) |
| Enclosure Cutout | 4.92 x 4.92in |
| Color | RAL 7035 light gray |
| Includes | Optional mounting screws |
| Additional Information | Purchase exhaust grille separately |
